支撑气弹簧安装位置选择指导

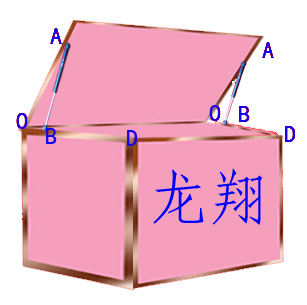

有两种可选择的安装方式：

Two ways you can choose to install:

一：AO点小于OB点的长度

Ⅰ: AO ﹤OB

二：OB点小于AO点的长度

Ⅱ: AO  ﹥0B

﹡先确定A、B点，计算所用气弹簧的大概行程：

First, make sure of  the A、B spot, calculates the gas spring ’s general stroke:

打开箱盖后的AB长减去关上后的AB长，等于所需要的气弹簧行程；

AB length( open the box cover)－A’B’ length (closed the box cover) = gas spring

stroke;

﹡再计算选择的气弹簧是否合理：

Then, calculate again ,make sure the stroke is suitable or not.

气弹簧行程×2+80MM=打开后的AB长。

gas spring stroke×2+80MM= AB length( open the box cover)

注：如果所得结果大于AB长，那么就需要A点向O点移动或者B点向D

点移动，来增加AB点的长度，即增加气弹簧的长度。

Note: If the result is lengther than AB( open the box cover), you need to move A point approached to O point or B point approached to D point:Increased AB length, means increased gas spring’s length.
